The theory here is to create a system where we can create a design using individual bar designs that i can produce easily, and thus keep the price down. Using these in a variety of designs, so you can have a bespoke design but without the bespoke price of doing everything on an individual basis.
This applies to, Juliet balconies, wall railings and iron fencing as well as patio railings and gates..
Below are single item bars. That’s one process, twisting a bar, welding a ring or cage in, welding scrolls to the bar..
£2.50
£5.00
£4.00
£3.25
£6.00
The Twists part is usually around 300mm tall, but can be as small as 100mm, so possible to have two twists in a 400mm tall panel.
Circle is 100mm diameter, to get 2 circles in a bar the minimum height would need to be 450mm
Cages are 150mm tall, minimum height for 2 cages would be 450mm
C scrolls are usually 100mm tall, so minimum height for two would be 400mm
Scroll need to be 250mm tall minimum or they look Squashed. so minimum height for two will be 500mm
This is the additional cost, if removing a plain bar and replacing with one of the above. Allowing prices to be worked out as you design your own from a basic frame price.
So this is all nice but what can you do with the bars? Much depends on the length of your upright bar, but here are 36 examples of what can be done when using 830mm upright bars. essentially what would be used in a 1 mtr tall gate. There are plenty of possibilities. to choose from.

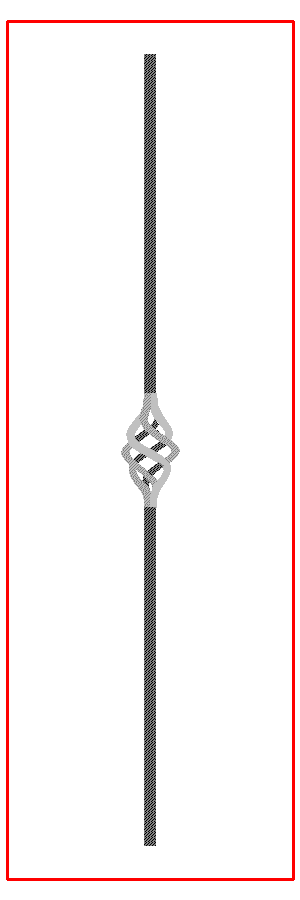

Single cage with plain bar
Price from £4.00

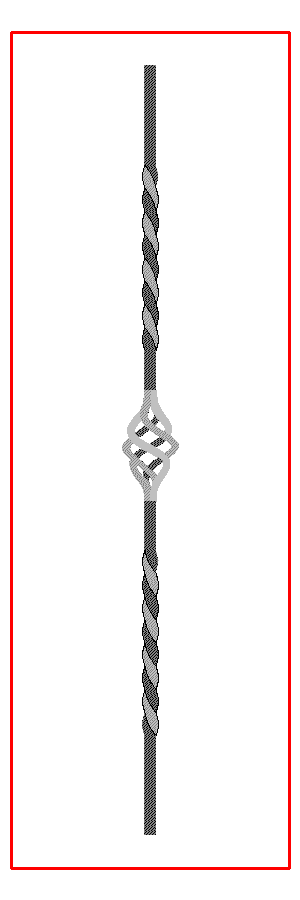

Single caged with double twist.
Price from £9.00

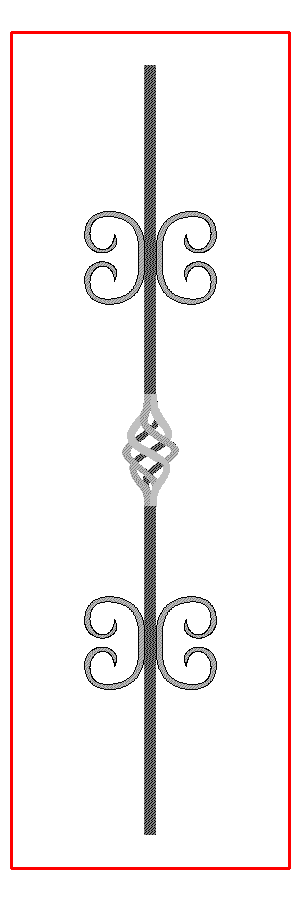

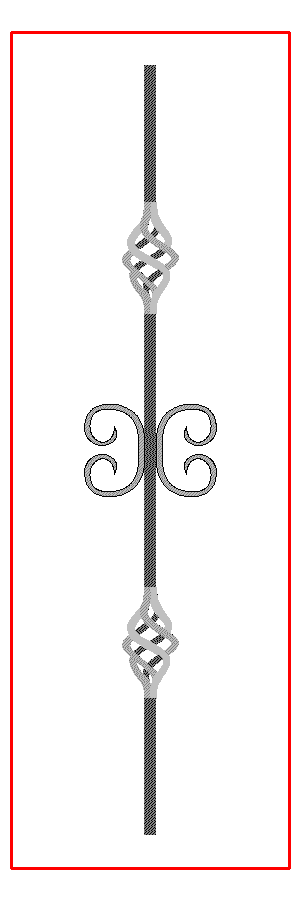

Single caged bar with double C scroll
Price from £10.50

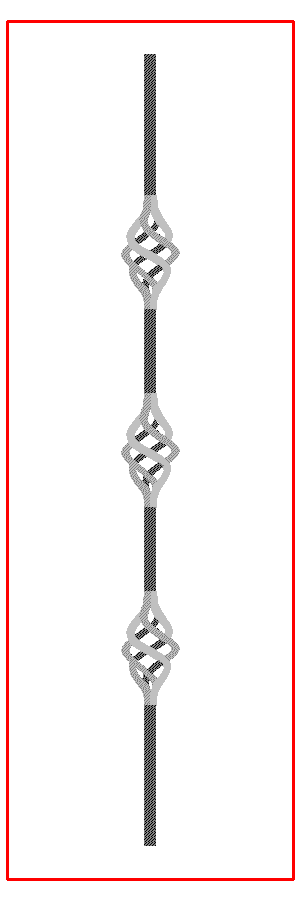

Three cages in one bar.
Price from £12.00

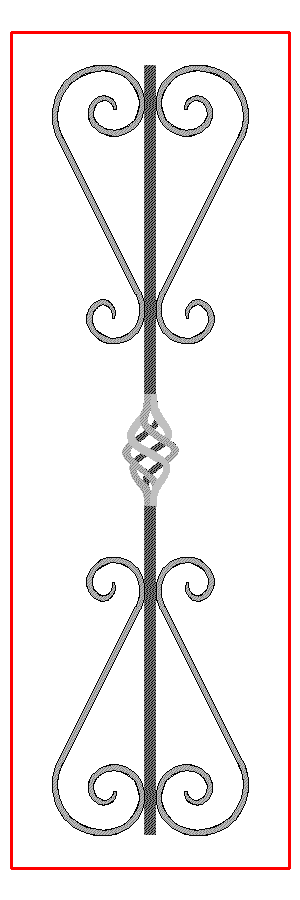

Single caged bar with S Scrolls
Price from £16.00

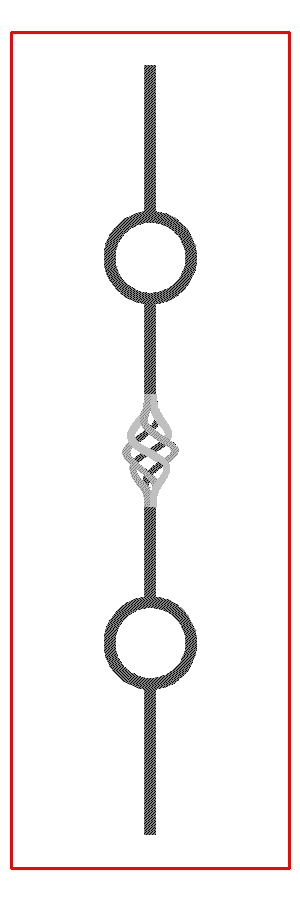

Single caged bar, with top and bottom ring
Price from £14.00

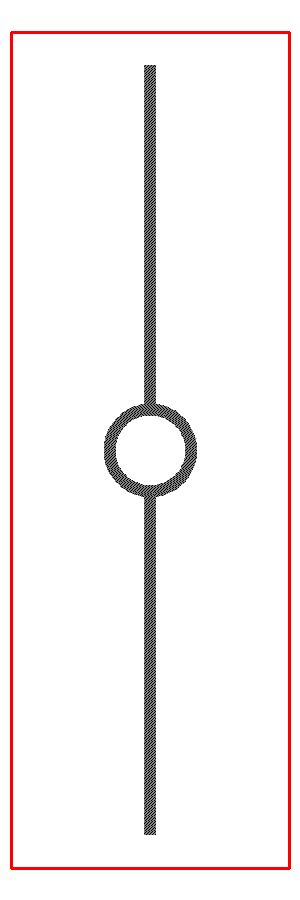

Single ring with plain bar
Price from £5.00

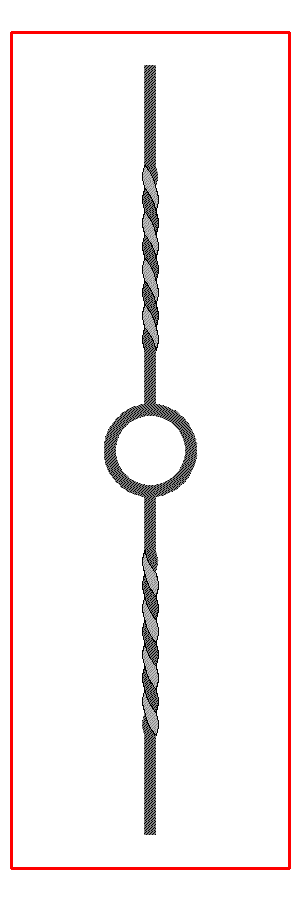

Single ring with double twisted bar
Price from £10.00

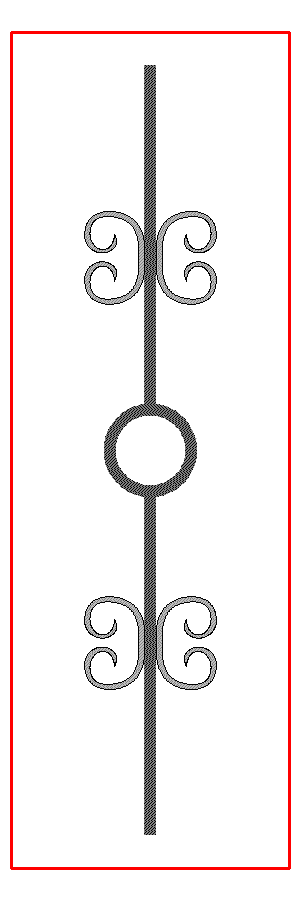

Single ring with double C scroll
Price from £11.50

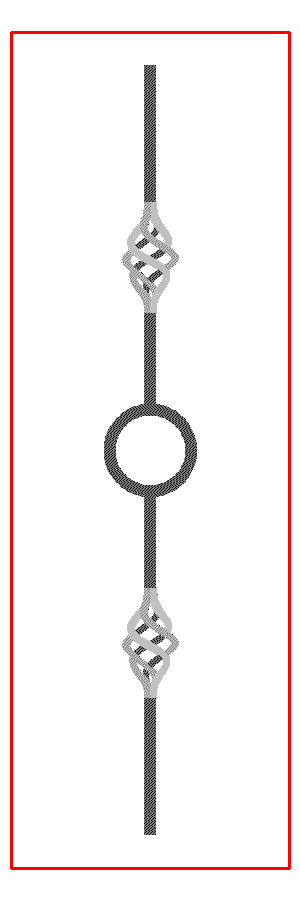

Single ring with double cage bar
Price from £9.00

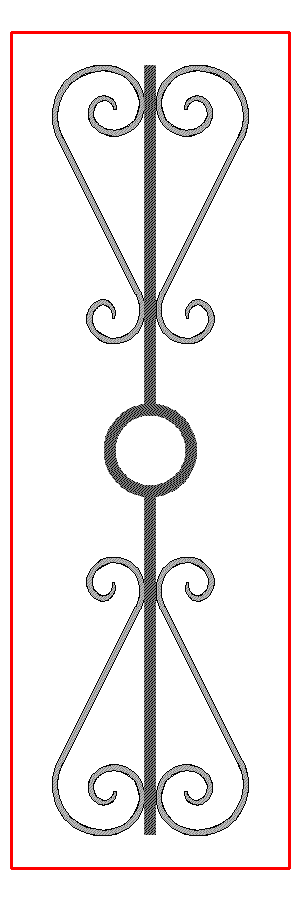

Single ring with double S scroll bar
Price from £19.00

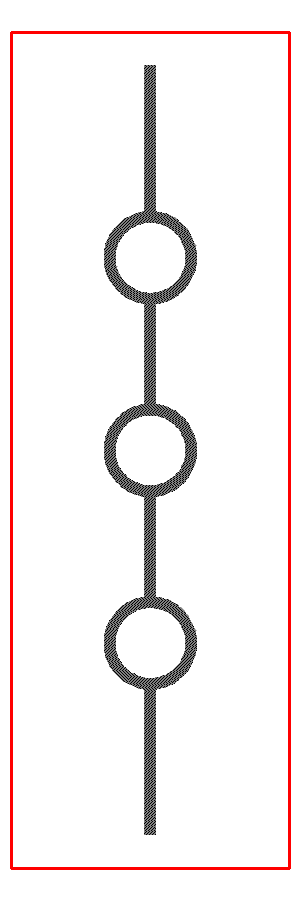

Three rings in one plain bar
Price from £15.00
Single cage with plain bar
Price from £3.00
Single cage with plain bar
Price from £8.00
Single cage with plain bar
Price from £14.00
Single cage with plain bar
Price from £13.00
Single cage with plain bar
Price from £12.00
Single cage with plain bar
Price from £16.00

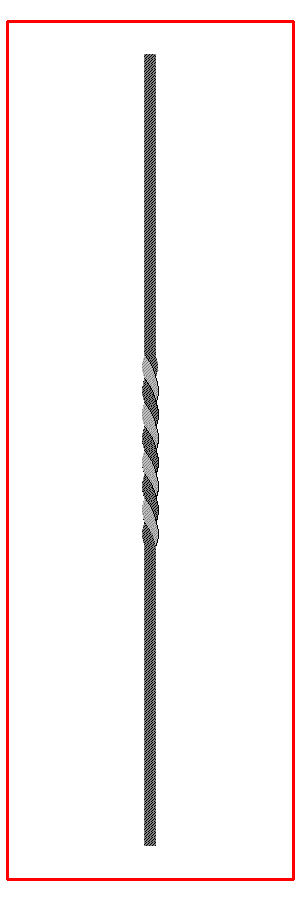

Single twist with plain bar
Price from £2.50

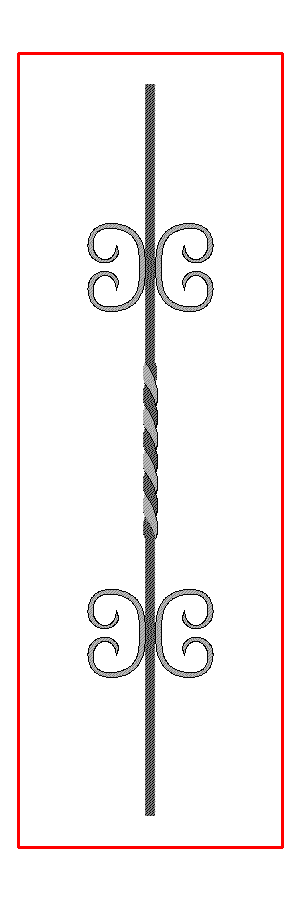

Single twist with Double C scrolls
Price from £9.00
Single twist with double cage
Price from £10.00
Single twist with Double S scroll.
Price from £14.00

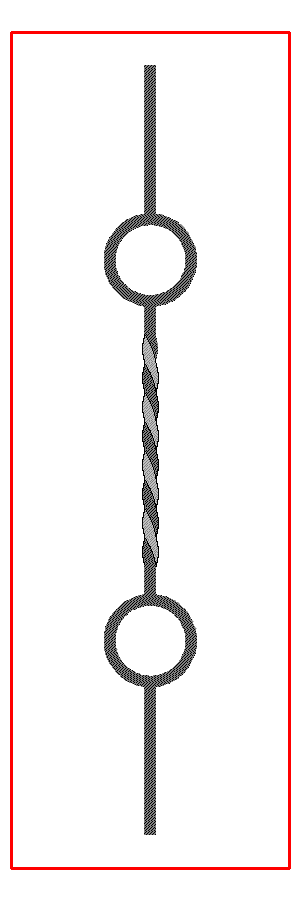

Single twist with double ring bar
Price from £12.50
Double S scroll with plain bar
Price from £12.00

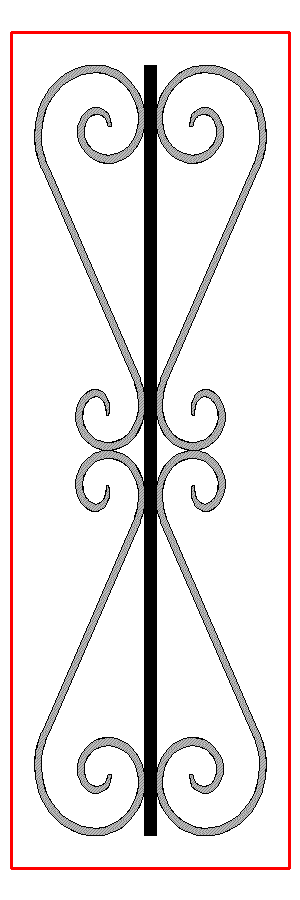

Double S Scroll with plain bar
Price from £12.00

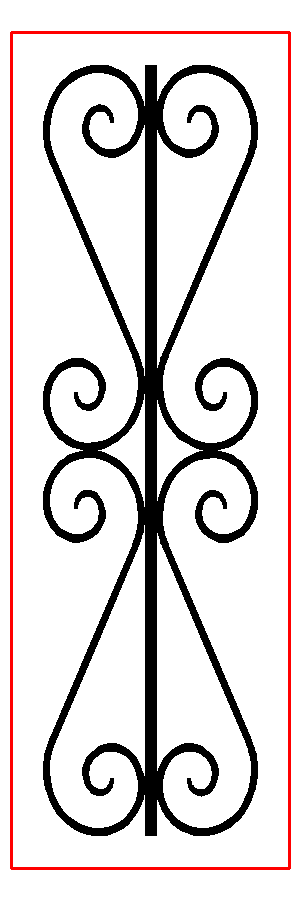

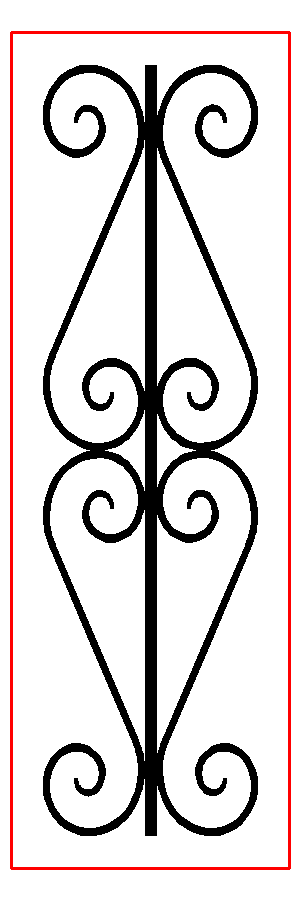

Large double S scroll plain bar
Price from £12.00

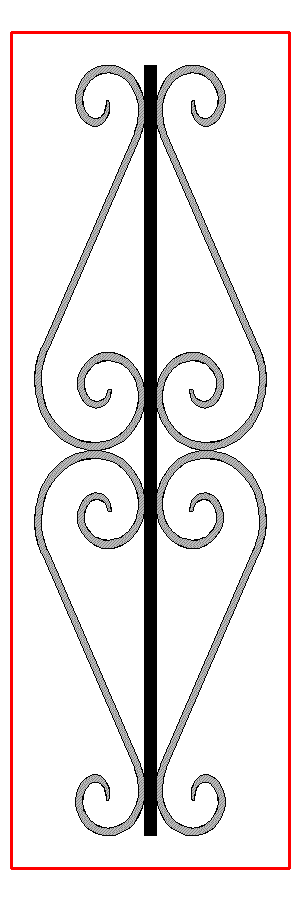

Large double S scroll on plain bar
Price from £12.00

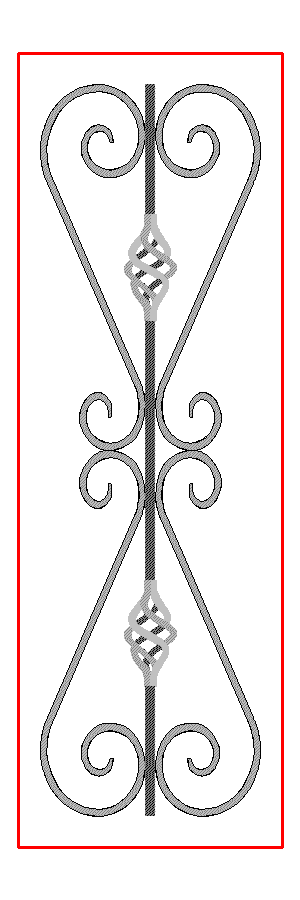

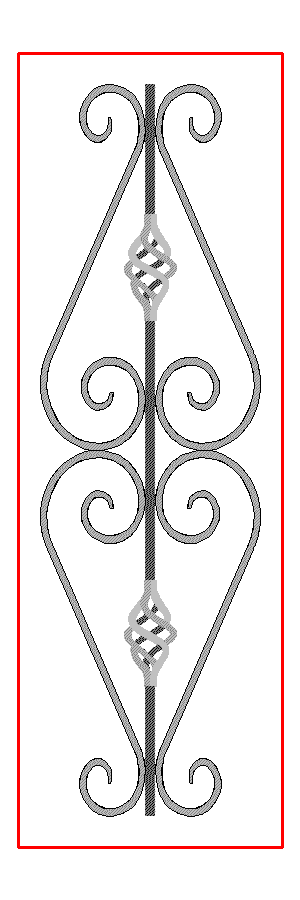

Double S scroll and double cage bar
Price from £20.00
Double S scroll and double cage bar
Price from £20.00

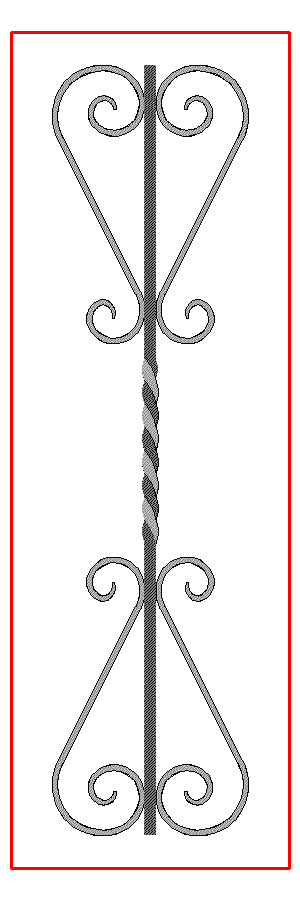

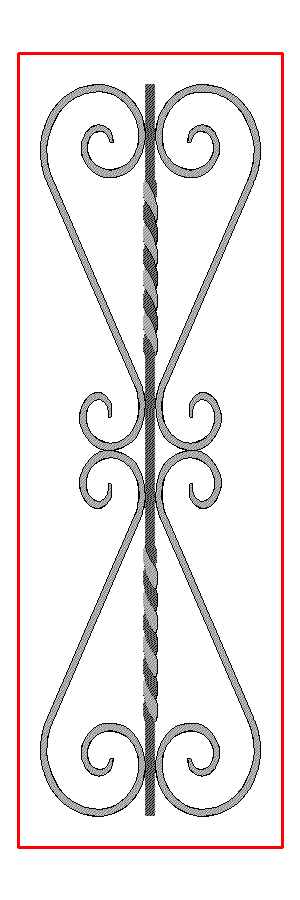

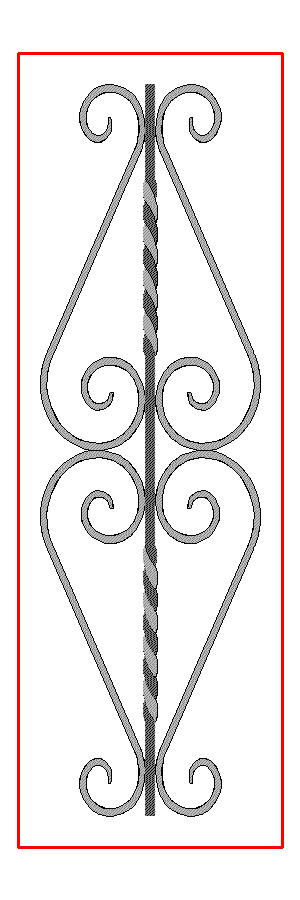

Double S scroll and double twist bar
Price from £17.00
Double S scroll and double twist bar
Price from £17.00

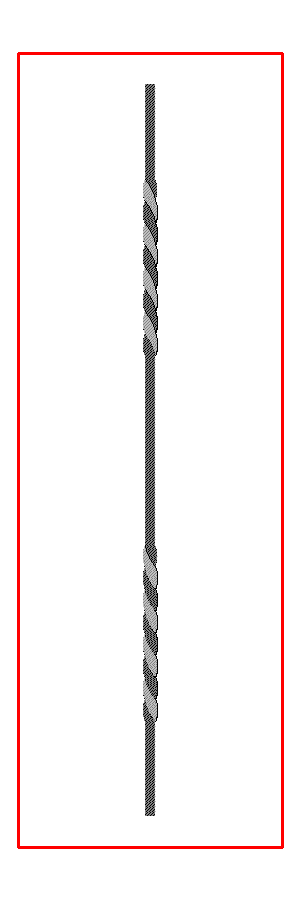

Double twisted with plain bar.
Price from £5.00

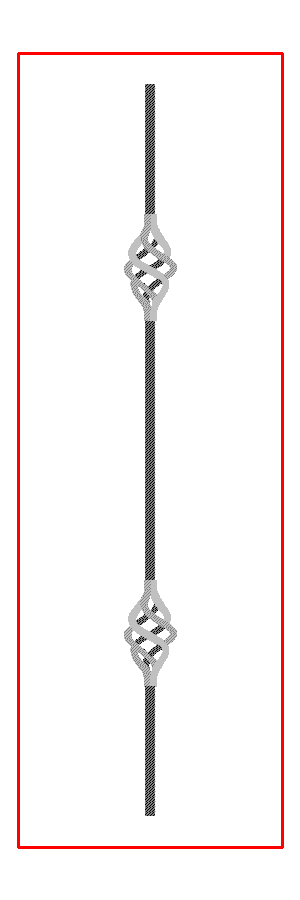

Double cage with plain bar
Price from £8.00

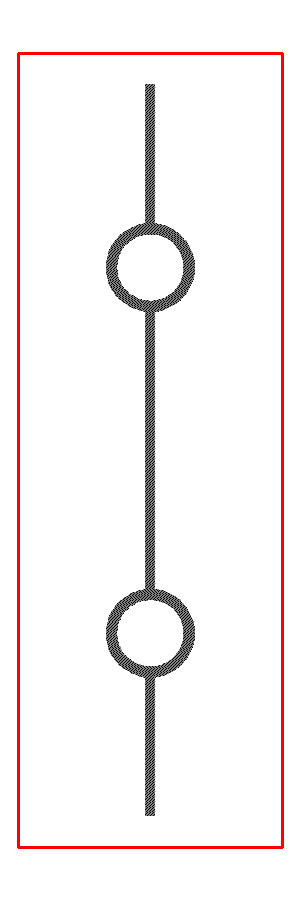

Double ring with plain bar
Price from £10.00

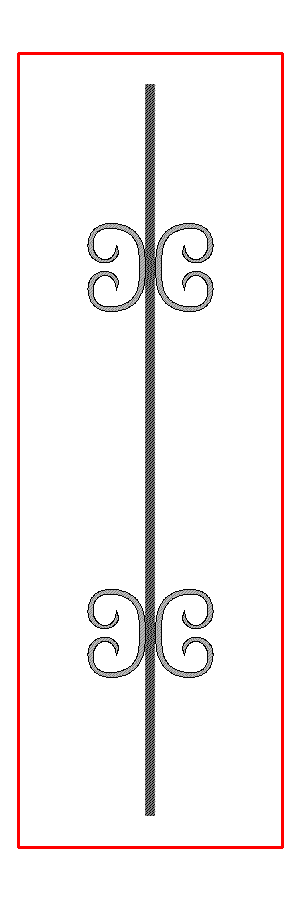

Double C scroll with plain bar
Price from £6.50

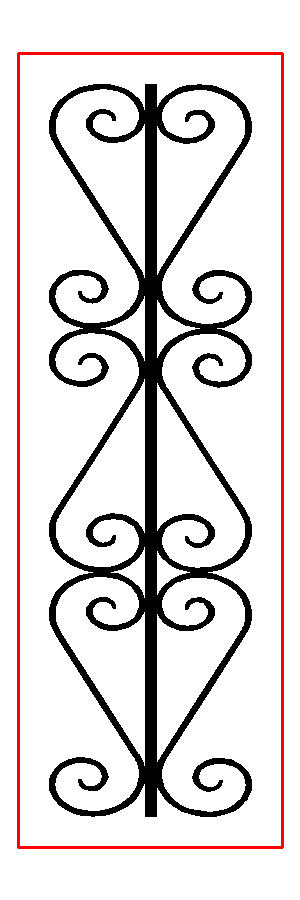

Triple large S scroll on plain bar
Price from £18.00
The vast majority of possibilities are covered here. These work fine for most gates 3ft tall or gates 6ft tall Except for juliet balcony railings of the single horizontal variety where the upright bar is 1100mm high. using a double scroll bar to meet the height can make it look slightly stretched, would then advise using a 4 pair scroll pattern, Although a triple would work just as well.
